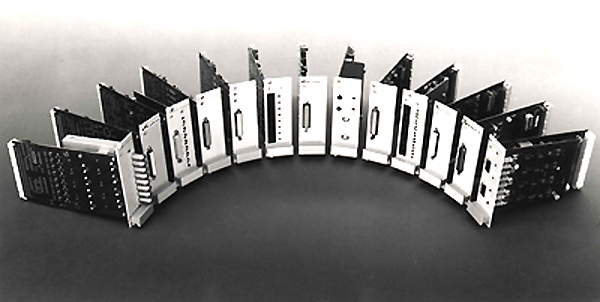

Universal Input Card: A 8274 UEK 8

The universal input card A 8274 UEK 8, certified according to DIN ISO 9001, is an independant unit on an european standard card. It may be connected to an electronic bus.
By using this input card a complete input output system may be created, thus it allows the
measurement of analog voltages. The cards can either be integrated in ITF Engineering- or
OEM-systems.

System features and advantages:

* european standard card
* 8 inputs
* addressable from a computer bus
* inputs may be interrogated in any format
* connection via 25-pol. Sub-D socket on the front panel of the card

The universal output cards A 8274 UAK 8R / 8S, certified according to DIN ISO 9001, are
completely units in european standard design. They may be connected to an electronic bus.
The cards can either be integrated in ITF Engineering- or OEM-systems.
The A 8274 UAK 8R features 8 change over relay contacts and the A 8274 UAK 8S has
8 constant current outputs.

System features and advantages:

* european standard card
* 8 relay with change over contacts or 8 constant current outputs
* adressable from a computer
* connection via 25 pol. Sub-D socket on the front panel of the cards

The compact output card A 8274 PSK 8 / 16, certified according to DIN ISO 9001, is a combination of sub-miniature valves and microelectronics and can be controlled via computer bus. The output card can be integrated in a pneumatic system (A 8274 PS) or in OEM- apperatus. Thus customer specific requirements e.g. the controlling of pneumatic air can be solved conveniently in a 19 inch standard housing. With its 8 or 16 open collector outputs it can activate valves, lamps etc. for different automation tasks.
This modul can be used in an extension module in the pneumatic system A 8274 PS or as a
system card in test devices thus solving  customer specific pressure air control problems.

System features and advantages:

* 16 outputs with an extendable power output of max. 20VA (open collector)
* the low numbered outputs (1-8) are positioned on the lower 15-pol.
   Sub-D socket
* the high numbered outputs (9-16) are positioned on the upper 15-pol.
   Sub-D socket
* european standard card

The compact pneumatic module A 8274 PSA 8, certified according to DIN ISO 9001, is a combination of sub-miniature valves and microelectronics. It allows both the control and air
switching to 8 seperate outputs. The card can be adressed from a computer bus or via an
IEEE 488 interface using the A 8274 KS/PS-IEController. The card fits into a 19 inch standard housing. This module can be used as an extension module in the pneumatic system
A 8274 PS or as a system card in test devices thus solving customer specific pressured air control problems.

System features and advantages:

* 8 instant push-in fittings for the air out in the front
* 8 valves and the whole controlling electronic is placed on one card
* european standard card
* air distribution block

The fibre optic input card A 8274 LEK 8, certified according to DIN ISO 9001, is an independant unit on an european standard card. It may be connected to an electronic bus.
The cards can either be integrated in ITF Engineering- or OEM-systems. It therefore provides
an elegant solution to many specific customer application problems.

System features and advantages:

* european standard card
* 8 fibre optic input plugs with snap connector, compatible with the fibre optic
   cable type A 8274 LL
* adressable from a computer bus
* sensitivity adjustment per channel via a potentiometer
* logical state of each channel shown by LED indicator
* shows the state of a light source, e.g. LED, or 7 segment LED´s or any other
   light source

The fibre optic input cable A 8274 LL, certified according to DIN ISO 9001, is a highly
flexible fibre optic cable which may be positioned over a light emitting source as a sensor.

One end of the cable is fitted with a special snap-in plug that fits into the socket on a fibre optic input card A 8274 LEK 8. The other end is made up with a brass fitting which has an
external 4mm thread. The construction is such that the cables can be mounted on a pitch of
0.2". Using other methodes they may be mounted at a higher density. The fibre optic cable
has a standard length of 1m, other lengths on request.

The motor control card A 8274 MSK, certified according to DIN ISO 9001, is designed for the
motor drive control of radial and axial knobs and rotary applications using DC motors.
This card enables the user to drive and control up to 4 motors per card whereby the motor
speed and motor ´end´ position can be set up i.e. monitored. The card can be integrated in the
modular test system A 8274 of ITF Engineering or in OEM-systems.

It is used in connection with motors to activate potentiometers, sliding potentiometers,
trimmers, turn switches, etc. Typical applications are automated handling tasks in the
production. Customer specific controllers with mechanical adaptions can be relized as well.

System features and advantages:

* european standard card
* enables to drive and control up to 4 motors
* motor speed can be pre-selected separately
* threshold adjustable
