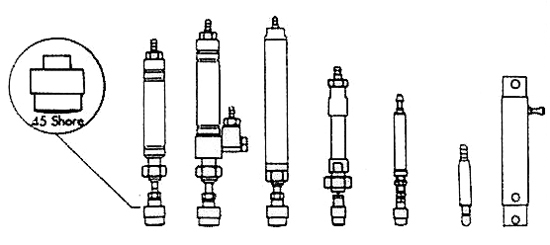

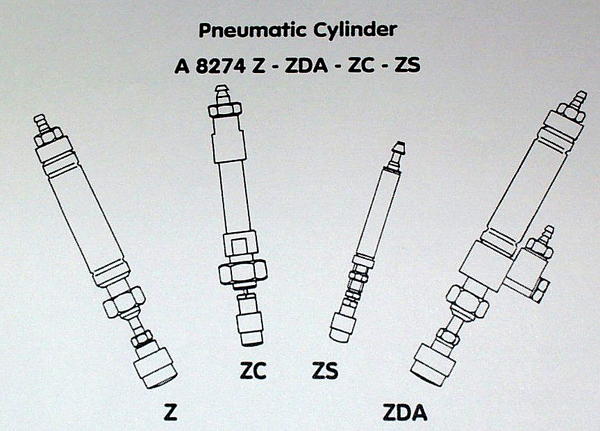

| A 8274 - Cylinder |
System features and advantages:
| Type A 8274 | Z/ZL | ZDA/ZDAL | ZB | ZC | ZS | ZM | ZF |
| Durchmesser (mm) | 10 | 10 | 10 | 8 | 5 | 4 | 12x5 |
| Kolbengröße (mm) | 8 | 8 | 6 | 5 | 4 | 3 | 9X2,5 |
| Gesamtlänge (cm) | 10/11 | 12.5/25 | 11,5 | 10 | 8,5 | 3 | 6,5 |
| Hub | 12.5/25 | 12.5/25 | 13 | 10 | 10 | 6 | 10 |
| Kraft bei 6 bar | 30 | 30 | 10 | 11 | 4,7 | 2,6 | 30 |
| Kraft bei 3 bar | 13 | 17 | 5 | 5,5 | 2,4 | 1,8 | 13 |
| Zylindertype | EW | DW | EW | EW | EW | EW | EW-F |
Rights of changes without notice.
