PT 940



Electro-Galvanic Control Unit For
Stanger Baths


System features and advantages:

    * Compact and stable design

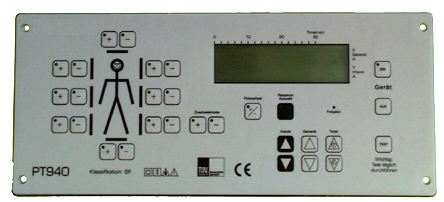

    * Clearly designed operator control panel
    * Easy to operate
    * Flat, user friendly and waterproof membrane keyboard
    * LC-Display to show the measurement values, the time etc.
    * Free selectable mode
    * 4 Different stimulus currents superposing the direct current
          MF Monofase             ( sinehalfwave with 50 Hz )
          Monofase                           Sinushalbwelle mit 50 Hz
          Rectangle swell curent  ( 140 Hz rectangle with 2 Hz sinewave overlay)
          Rechteck Schwellstrom     140 Hz Rechteck mit 3 Hz Sinusüberlagerung
            Ultra swell curent         ( 140 Hz rectangle Puls/wait 2/5)
          Ultra Reizstrom                   140 Hz Rechteck Puls/Pausenverhältnis 2/5
          Rectangle swell curent   (50 Hz rectangle with 2 Hz sinewave overlay)
          Rechteck Schwellstrom        50Hz Rechteck mit 2 Hz Sinusüberlagerung)
    * automatic and soft advance of intensity at power failure and at
       the end of the therapy
    * Self test procedure built in
    * Individual polarity of the single electrodes
    * pin-compatibility to all ITF Engineering control units and many
       control units of other producers
    * In accordance with the latest safety specifications


The PhysioTronic control unit PT 940 has been developed by ITF Engineering GmbH, certified
according to DIN 9001, using experience and know-how of 23 years of working in the medical PhysioTronic field along the state of the art technology and with the latest microprocessor design techniques. This technology now enables reliable, precise and reproducible therapy applications.
Due to the high degree of technology utilized, the safety of both the patient and the therapist can
be guaranteed at all times.

The PT 940 has been specifically designed for use with the electro-hydrotherapy (Stanger Baths)
and is used to control the galvanic currents in specially designed therapeutic baths. Due to the nature
of this therapy, the unit should only be operated by trained personal.

It should also be noted that the specifications laid down by the MedGV for this type of equipment.
The PT 940 control unit has been tested and certified according to EMC requirements and by the
German TÜV Südwest testing laboratory which is responsible for the testing and approval of electronic equipment used in medical applications.
All the control units have the CE-Sign.

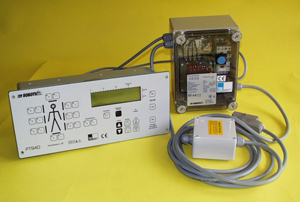

Shipping Contents:

The PhysioTronic control unit PT 940 is supplied with the mains unit NG and the mains power
box NAK. The apparatus are supplied already wired. The length of the cables can vary according
to the requests of the customer.


All components used with this system meet VDE guidelines and the assembly groups are inspected
by the TÜV as required under law.


Rights of changes reserved
